LZCT Zct Current Transformer Secondary Windings Full - Enclosed

Name: LZCT Zct Current Transformer Secondary Windings Full Enclosed
Brand: Chuangyin
Price: 1 USD

Brand Name : Chuangyin

Model Number : LZCT-11

Certification : Type test report

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A,

Supply Ability : 1000pcs/week

Delivery Time : Within 7 days

Packaging Details : Carton packing for one sets, one set including three piece with Components

manufacture : full-enclosed

color : Red and Black

Rated Secondary Current : 5A,1A

Power Frequency Witnstand Voltage : 3kv

Rated Frequency : 50/60HZ

Type : Bushing

Contact Now

LZCT Instrument Current Transformer, Secondary Windings Full-Enclosed

The secondary windings are full-enclosed in the flame retardant plastic shells, primary bushing or cable can pass through the inner hole, bottom has installation inserts for fixation. It is simple and shortcut, is suitable for measuring current, signal collection and protective relaying in the medium voltage power system of bushing or cable etc.

Model	LZCT1-11C			LZCT1-11P		LZCT1-11CP
Purpose	Measuring current transformer			Protective current transformer		Double winding current transformer
Rated Primary current	Accuracy class and rated burden (VA)			Accuracy class and rated burden (VA)		Double winding accuracy class and rated burden (VA)
Rated Primary current	0.2	0.5	1	10P10	10P5	0.2	0.5	10P10	10P5
50			1
75		1	1.5
100		2.5	5		2		1
200		5	5	1.5	2.5		2.5
300	2.5	5		2.5		1.5	2.5		2.5
400	5	7.5		3.75		2.5	5		2.5
500	5	10		5		2.5	5	2	3.75
600	5	10		5		3.75	7.5	2.5	5

Model	LZCT2-11C			LZCT2-11P		LZCT2-11CP
Purpose	Measuring current transformer			Protective current transformer		Double winding current transformer
Rated Primary current	Accuracy class and rated burden (VA)			Accuracy class and rated burden (VA)		Double winding accuracy class and rated burden (VA)
Rated Primary current	0.2	0.5	1	10P10	10P5	0.2	0.5	10P10	10P5
30			1.5
50		1.5	2.5		1.5
75		2.5	5		2.5		1.5
100		2.5	5		3.75		2.5		2
200	2.5	5	7.5	3.75	5		3.75	1.5	2.5
300	5	7.5		5		2.5	5	2.5
400	7.5	10		7.5		5	7.5	3.75
500	10	15		10		5	10	5
600	10	15		10		5	10	5

LZCT Zct Current Transformer Secondary Windings Full - Enclosed

Product Tags:

ct current transformer

instrument potential transformer

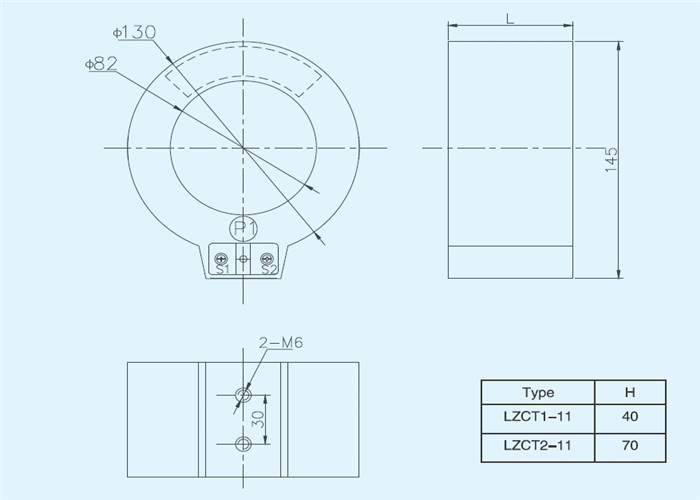

LZCT Zct Current Transformer Secondary Windings Full - Enclosed Images
